  Product Information

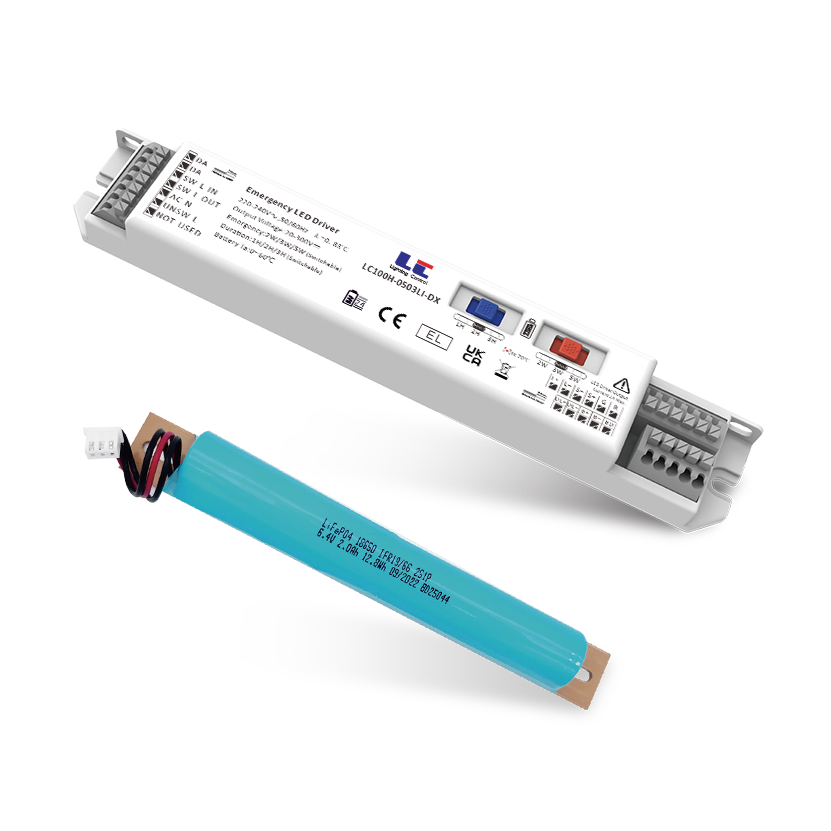

・The LC100H range of LED emergency module is designed as elegant,
    slim and compact size.This current-select seriesconsists of highly
    effcient, linear, constant current LED emergency converters with
    LiFePo4 battery pack. These convertersprovide economic and flexible
    solutions for indoor lighting applications.
・The slim type PC structures with extra side holes, to provide more
    flexibility in various fixtures.
・LC100H can achieve three output emergency powers and times by
    shorting the designated current selection buttons onthe driver,from
    1 hours to 3 hours, and from 2W to 5W emergency power.
・The output voltage to LED loads or arrays is a universal 20 300V DC,
    which it is able to convet stably almost all LEDmodule or arrays to
    emergency operation.lts surge protection reach 2KV.
・This converter is verified by TUV Labs, with ENEC certification, CE UKCA
    marks.
・Its working ambient temperature covers from 0'C to 55'C deqree,
    meanwhile its storae temperatures can accept upto70°C degree.
・The Emtrons' Poweriod LiFePo4 battery pack can provide more than
    3 plus hours emergency load.
・The EM100H range is designed for three versions, which integrates as
    Manual Testinq, Auto Testing and DALl 2.0 version.
LC100H-0201LI-DX | LC100H-0202LI-DX | LC100H-0203LI-DX | |
Output Power | 2W | 2W | 2W |
Discharge Duration | 1H | 2H | 3H |
Input Voltage | 220-240VAC,50/60Hz | 220-240VAC,50/60Hz | 220-240VAC,50/60Hz |
Input Current | 30mA Max. | 30mA Max. | 30mA Max. |
Power factor | 0.83 | 0.83 | 0.83 |
Output Voltage | 20-300V | 20-300V | 20-300V |
Output Current | 7-100mA | 7-100mA | 7-100mA |
Battery | LiFePO4 6.4V 1.5Ah | LiFePO4 6.4V 1.5Ah | LiFePO4 6.4V 1.5Ah |
Charge Time | 24H | 24H | 24H |
Test Mode | MT/AT/DALI | MT/AT/DALI | MT/AT/DALI |
IP Rating | IP20 | IP20 | IP20 |
Ambient Temperature | 0°C-55°C | 0°C-55°C | 0°C-55°C |
LC100H-0301LI-DX | LC100H-0302LI-DX | LC100H-0303LI-DX | |
Output Power | 3W | 3W | 3W |
Discharge Duration | 1H | 2H | 3H |
Input Voltage | 220-240VAC,50/60Hz | 220-240VAC,50/60Hz | 220-240VAC,50/60Hz |
Input Current | 30mA Max. | 30mA Max. | 30mA Max. |
Power factor | 0.83 | 0.83 | 0.83 |
Output Voltage | 20-300V | 20-300V | 20-300V |
Output Current | 10-150mA | 10-150mA | 10-150mA |
Battery | LiFePO4 6.4V 1.5Ah | LiFePO4 6.4V 1.5Ah | LiFePO4 6.4V 1.5Ah |
Charge Time | 24H | 24H | 24H |
Test Mode | MT/AT/DALI | MT/AT/DALI | MT/AT/DALI |
IP Rating | IP20 | IP20 | IP20 |
Ambient Temperature | 0°C-55°C | 0°C-55°C | 0°C-55°C |
LC100H-0501LI-DX | LC100H-0502LI-DX | LC100H-0503LI-DX | |
Output Power | 5W | 5W | 5W |
Discharge Duration | 1H | 2H | 3H |
Input Voltage | 220-240VAC,50/60Hz | 220-240VAC,50/60Hz | 220-240VAC,50/60Hz |
Input Current | 30mA Max. | 30mA Max. | 30mA Max. |
Power factor | 0.83 | 0.83 | 0.83 |
Output Voltage | 20-300V | 20-300V | 20-300V |
Output Current | 17-250mA | 17-250mA | 17-250mA |
Battery | LiFePO4 6.4V 1.5Ah | LiFePO4 6.4V 1.5Ah | LiFePO4 6.4V 1.5Ah |
Charge Time | 24H | 24H | 24H |
Test Mode | MT/AT/DALI | MT/AT/DALI | MT/AT/DALI |
IP Rating | IP20 | IP20 | IP20 |
Ambient Temperature | 0°C-55°C | 0°C-55°C | 0°C-55°C |

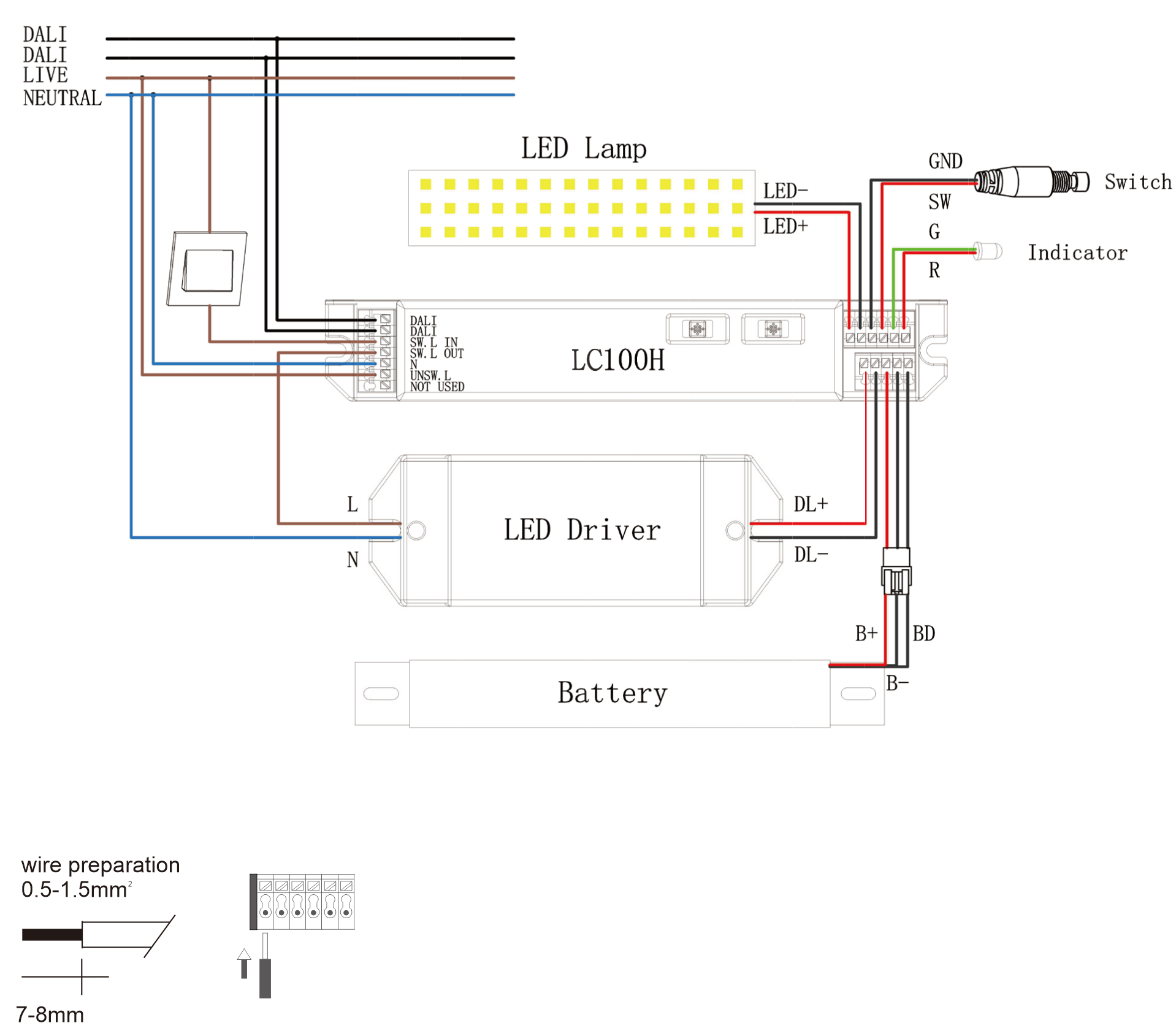

Cabling Diagram with LED Loads |
Dimensions & Weight |

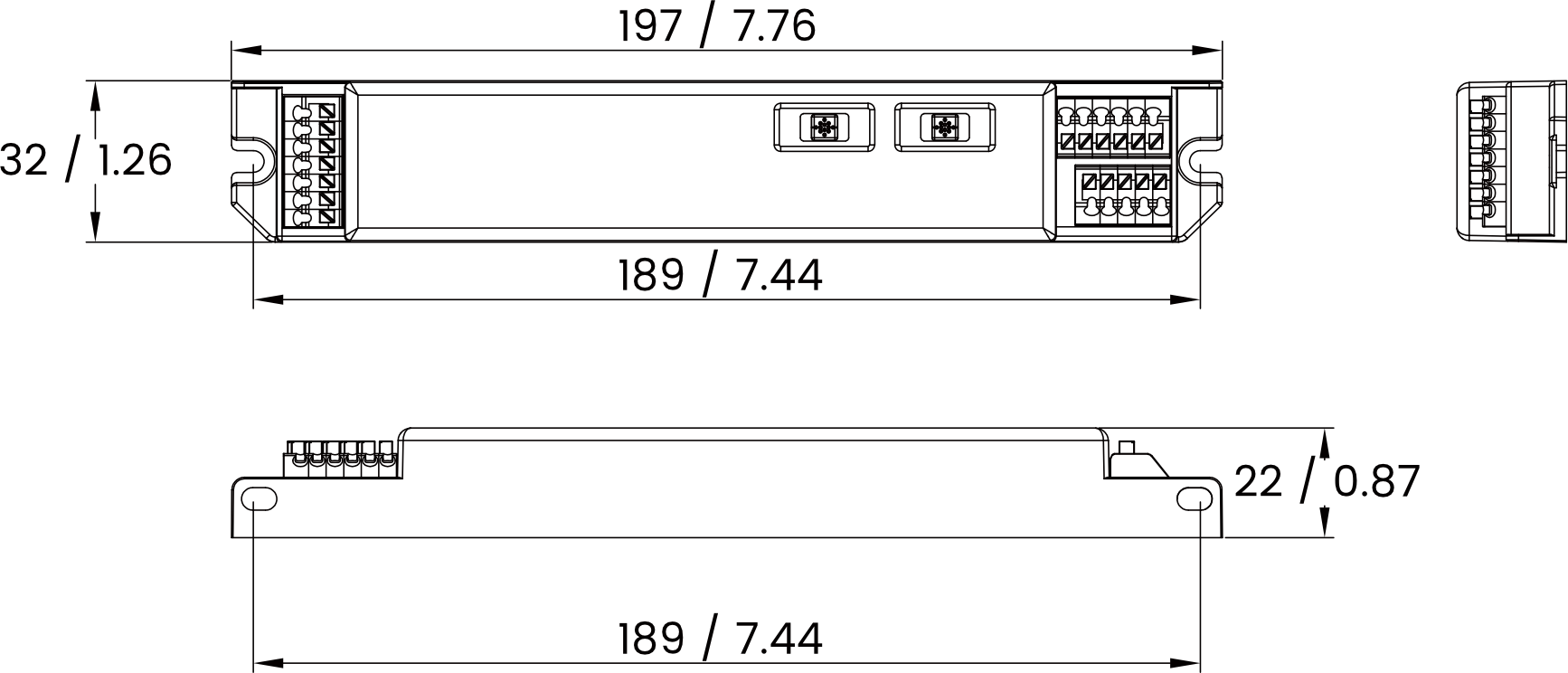

1. Converter:

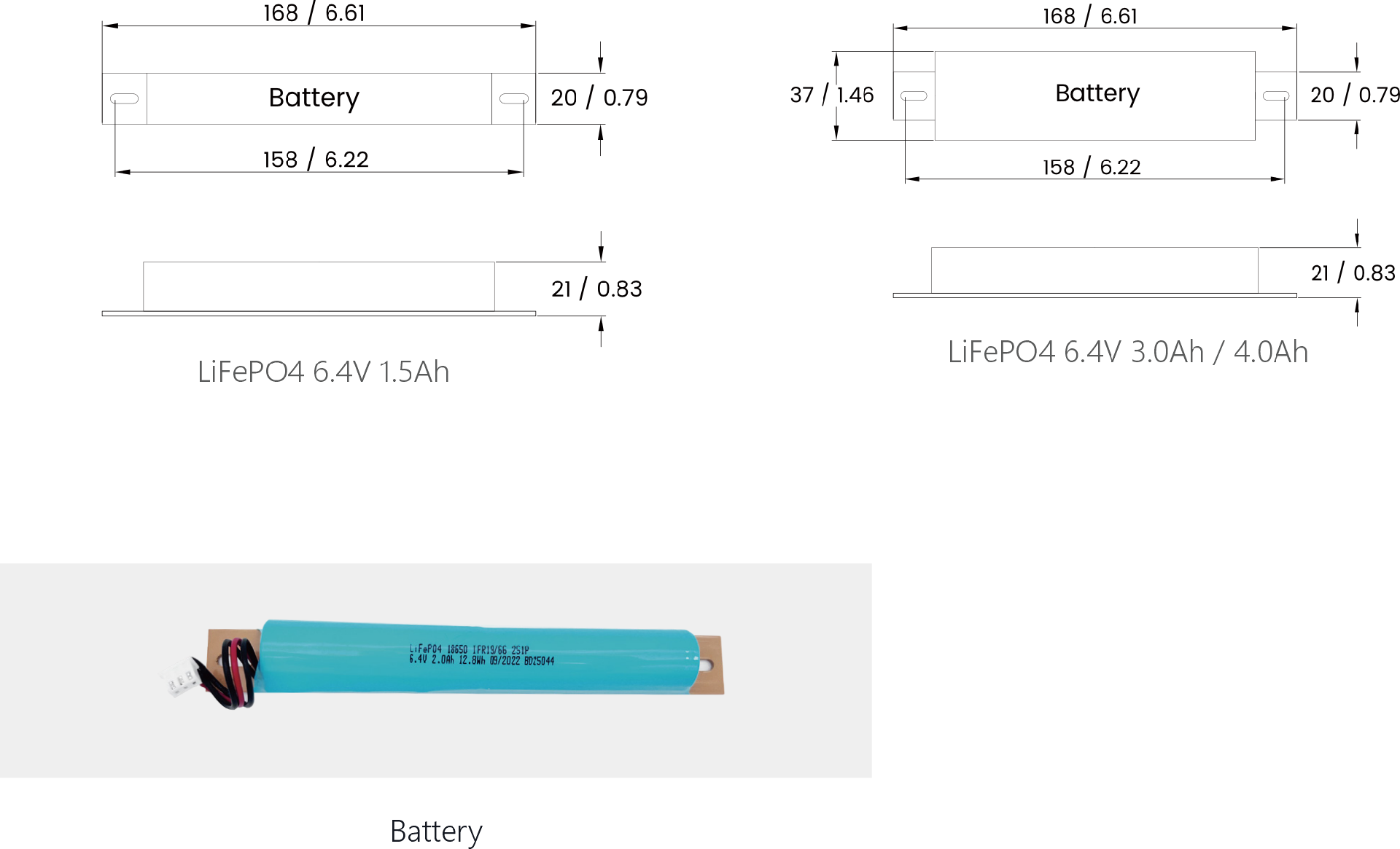

2. Battery Pack
Cable Specification |
・Installin accordance with Nationa and Loca Electrical Codes.
・Output cable requirements preparation for output.
Solid conductor:
Input: 0.5…0.75mm² / 20…18 AWG
Output: 0.5…0.75 mm² / 20…18 AWG
