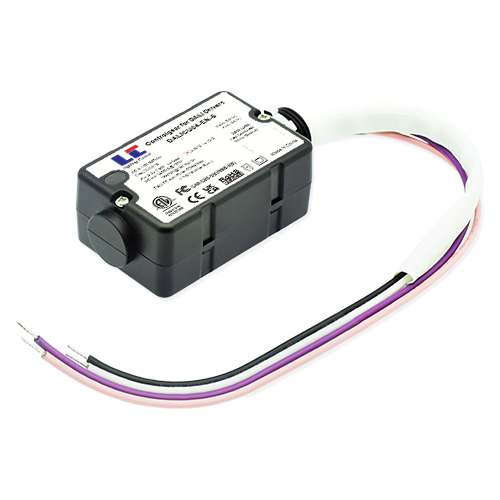

Product description
・It can measure power and internal temperature.
・Built-in DALI PSU, 15V, 55mA (programable to 200mA).
・AC output: 8A Max., 1385VA Max.
・IP24 protection rating.
・For luminaries of protection class II.
・DALI 2-wire sensor (highest priority) supported.
・The date can be read by ESI or DALI port.
・DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52
・The AC load relay can be switched off when dimming off.
・AC load relay will switch off AC output when dimming level is
set to 0.
・Zero-crossing switching function for AC load relay
| Ordering Information | |
| Model Number | DALICU04-EN-5 |
Full Product Name | DALI Controlgear |
| Input Information | |
| Line Voltage | 100 ~ 347Vac |
Line Curren | 0.1A Max. (AC output power is not included) |
| Line Frequency | 50 / 60Hz |
Min. Mains Voltage Operational | 90Vac |
| Min. Mains Voltage Operational | 370Vac |
Inrush Current | Cold Start ≤ 70A (twidth = 50us measured at 10% Ipeak) @ 347Vac, Per NEMA 410 |
| Output Information | |
| AC Output Current | 12A/120Vac, 8A/230Vac, 6.5A/277Vac, 5A/347Vac |
AC Output Inrush Current | 180A, 10ms (max.) |
Analog 0-10V Interface Max. Current | Sourcing / Sinking ≤ 25mA |
| DALI Output Voltage Range | 14Vdc to 18.5Vdc |
| DALI Open Circuit Voltage | 18.5Vdc Max. |
| DALI Max. Output Voltage | 18.5Vdc |
| DALI Typ. Output Voltage | 15Vdc |
| DALI Min. Output Voltage | 14Vdc |
| DALI Guaranteed Output Current | 55mA (programmable to 200mA) |
| DALI Max. Output Current | 62mA (210mA) |
DALI Max. Output Power | 1.0W (3.0W) |
| ESI AUX VCC | Nominal 15Vdc (deviation 13Vdc to 17Vdc) @ 50mA |
| Protections | Short circuit protection of DA+ / DA- |
| Environment & Approbation | |
Protection Rating | IP24 |
Ambient Temp Range | -20℃ to +70℃ |
Max. Case Temperature[Tcase] | 80℃ for Maintaining Specified Life Expectancy & 85℃ for CE Safety Features |
| Operating Condition | Damp and dry |
| Safety Standards | EN61347-1, EN61347-2-11 |
| EMC Emission | Compliance to EN55015, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, surge immunity Line-Line 1KV |
| Isolation | Refer to table |
| Audible Noise | < 24dB Class A |

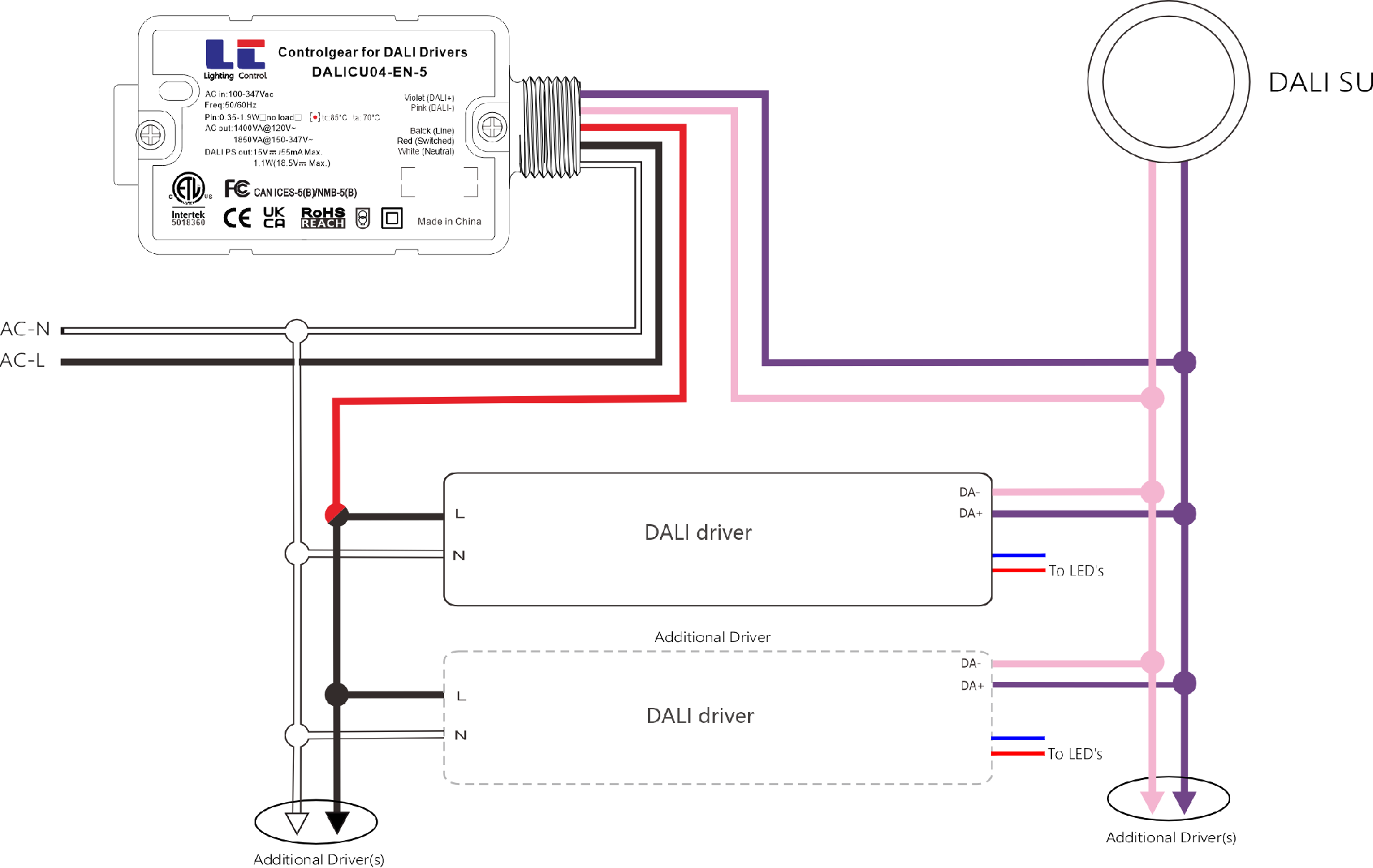

| DALI sensor to DALI driver wiring diagram |

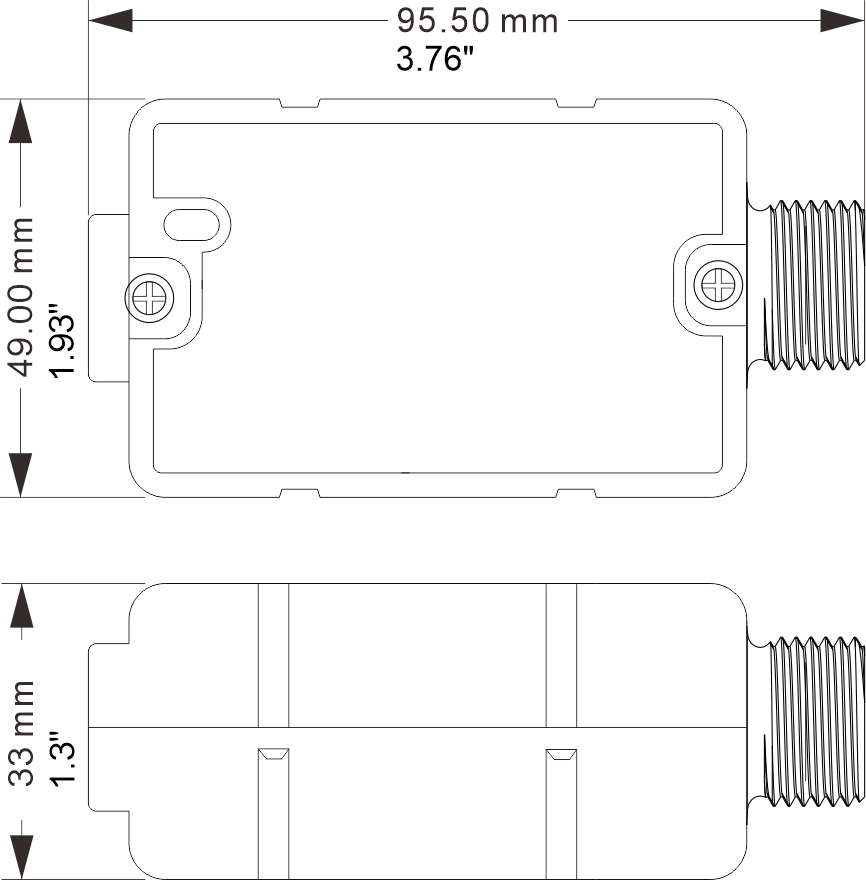

| Dimensions & Weight |
| inch | mm | ||
| Case Length | 3.76" | 95.5 |
|
| Case Width | 1.93" | 49 | |
| Case Height | 1.3" | 33 | |
| Weight | 0.37Ib/0.17Kg | ||
| Cable Specification |
Input wire specifications:
| Color | Cable | Length | Connector definition |
| White | 18AWG | 12"/304mm | AC Input Neutral |
| Black | 18AWG | 12"/304mm | AC Input Line |
| Red | 18AWG | 12"/304mm | AC-L out1 (Unswitched) |
| Red/Wht | 18AWG | 12"/304mm | AC-L out2 (Switched) |
| Violet | 18AWG | 12"/304mm | DA+ |
| Pink | 18AWG | 12"/304mm | DA- / GND |
