DALICU04-EN-3

•


    Product description
  ・It can measure power and internal temperature.
  ・Can convert 0－10V dimming signal or digital dimming commands
      into DALI broadcast command.
  ・2 CHs 0-10V dimming signals or digital dimming commands are
      buffered output.
  ・0-10V output interfaces are designed to sink or source current up
      to 25mA.
  ・Digital command or 0-10V signal dimming method can be selected
      through ESI.

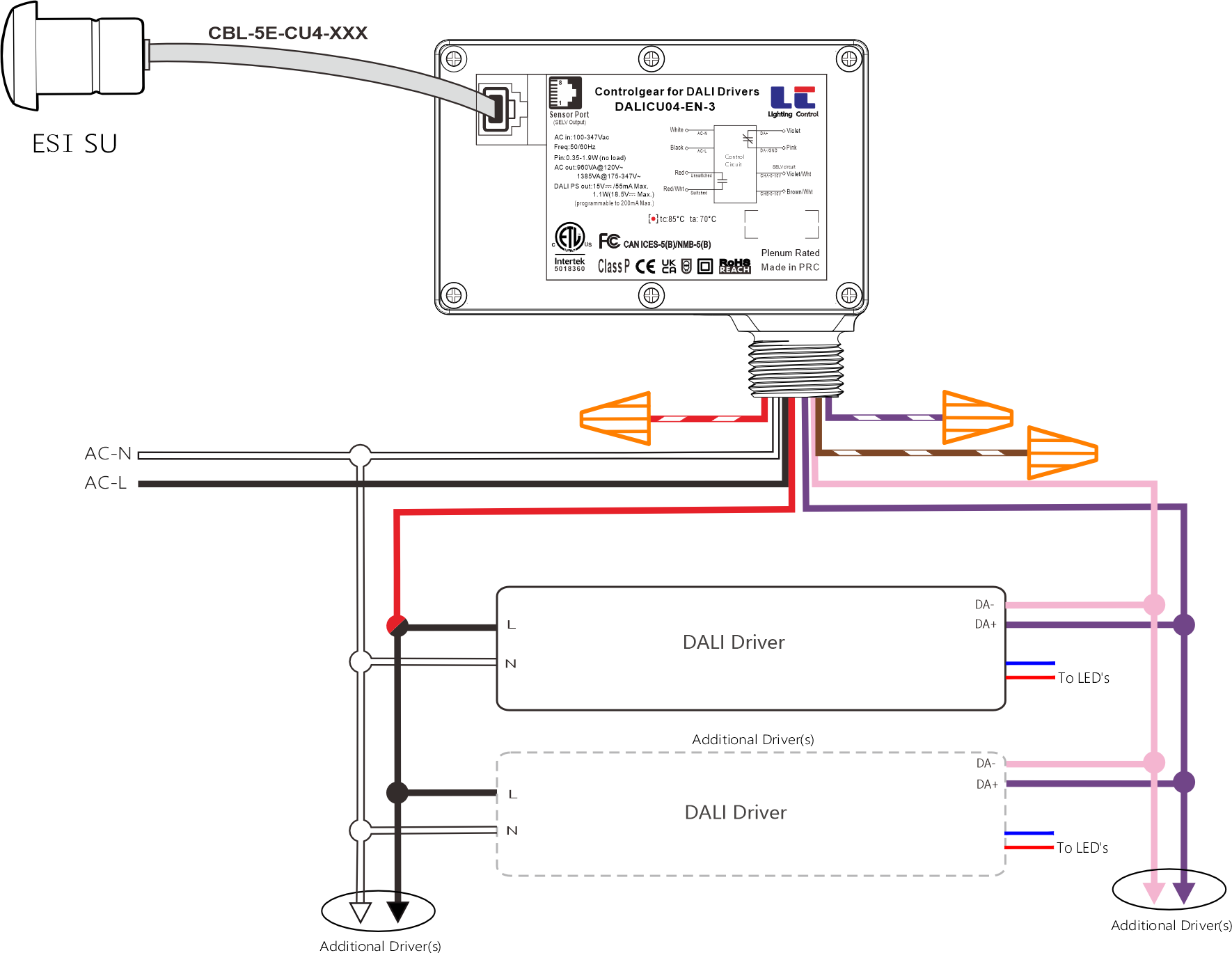

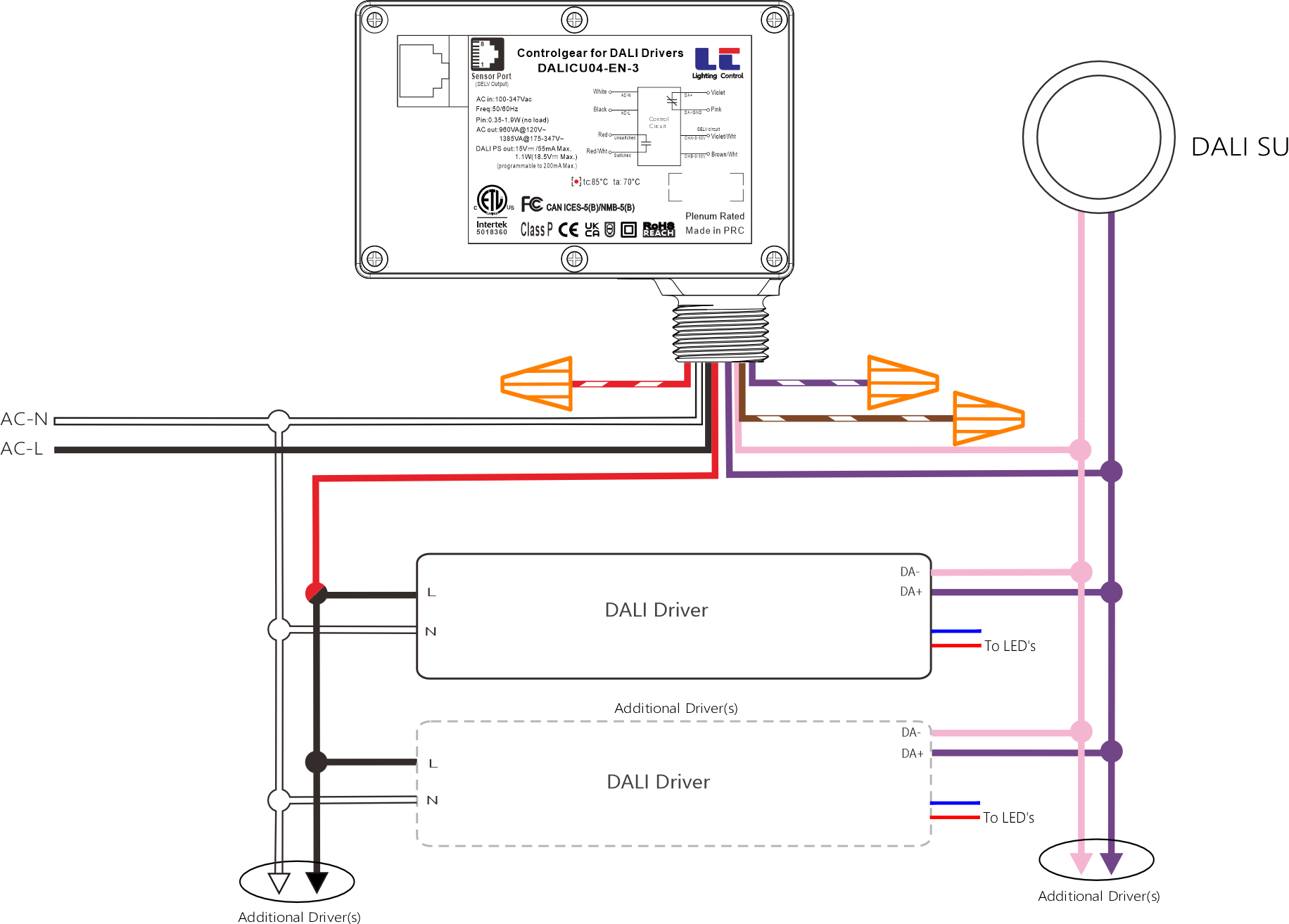

  ・DALI 2-wire sensor (highest priority) and ESI sensor supported
  ・The data can be read by ESI or DALI port.
  ・DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52.
  ・Selection of the desired device type via operating mode;
      0x00: IEC 62386-102 standard mode.
      0x80: manufacturer specific mode, DT6,DT8 Tc,DT17
      supported (default)
  ・Translate DALI dimming commands to 2 CHs analog 0-10V output
      (CHA: Intensity, CHB: CCT).
  ・The AC load relay can be switched off when dimming off.
  ・AC load relay will switch off AC output when dimming level is set to 0.
  ・Zero-crossing switching function for AC load relay.
  ・DC signal relay will short-circuit DALI interface and physically
      disconnect 0-10V output interfaces in case of power loss.
  ・Built-in DALI PSU, 15V, 55mA (programable to 200mA).
  ・Built-in ESI PSU, 15V, 50mA
  ・AC output: 8A Max., 1385VA Max.
  ・Over current protection when load connects to Switched, and the
      failure information is recorded in NVM
  ・IP24 protection rating.
  ・For luminaries of protection class II
  ・DALI / 0-10V interface is compliant with SELV.
  ・Communication protocol compatible with Enlighted Sensor
      Interface [ESI] Definition Rev 4.8.
