DALI Controlgear

  •   DALICU04-EN-1B

  DALICU04-EN-1B


  •   Product description

    ・It can measure power and internal temperature.
    ・Can convert 0-10V dimming signal or digital dimming commands
        into DALI broadcast command.
    ・2 CHs 0-10V dimming signals or digital dimming commands
        are buffered output.
    ・0-10V output interfaces are designed to sink or source current up
        to 25mA.
    ・Digital command or 0-10V signal dimming method can be selected
        through ESI.
    ・DALI 2-wire sensor (highest priority) and ESI sensor supported.
    ・The data can be read by ESI or DALI port.
    ・DiiA/Zhaga connectivity extensions DT49, DT50, DT51, DT52.
    ・Selection of the desired device type via operating mode;
        0x00: IEC 62386-102 standard mode.
        0x80: manufacturer specific mode, DT6, DT8 Tc, DT17
        supported (default).
    ・Translate DALI dimming commands to 2 CHs analog 0-10V output
        (ChA: Intensity, ChB: CCT).
    ・The AC load relay can be switched off when dimming off.
    ・AC load relay will switch off AC output when dimming level is set
        to 0.
    ・Zero-crossing switching function for AC load relay.
    ・DC signal relay will short-circuit DALI interface and physically
        disconnect 0-10V output interfaces in case of power loss.
    ・Built-in DALI PSU, 15V, 55mA (programable to 200mA)
    ・Built-in ESI PSU, 15V, 50mA.
    ・AC output: 8A Max., 1385VA Max.
    ・Over current protection when load connects to Switched, and the
        failure information is recorded in NVM
    ・DALI / 0-10V and ESI interfaces are both compliant with SELV.
    ・Communication protocol compatible with Enlighted Sensor
        Interface [ESI] Definition Rev 4.8 .


  • Data sheet
  • Feedback

etl.png    fcc.png    dali.png    ROHS.png     SELV.png        JY.png    回形.png     双重绝缘.png

   Ordering Information
   Model Number

 DALICU04-EN-1B

   Full Product Name

 DALI Controlgear

   Input Information

   Line Voltage

 100 ~ 347Vac

   Line Curren

 0.1A Max. (AC output power is not included)

   Line Frequency

 50 / 60Hz

   Min. Mains Voltage Operational

 90Vac

   Min. Mains Voltage Operational

 370Vac

   Inrush Current

 Cold Start ≤ 70A (twidth = 50us measured at 10% Ipeak) @ 347Vac, Per NEMA 410

   Output Information

   AC Output Current

 8A/120Vac, 6A/230Vac, 5A/277Vac, 4A/347Vac

   AC Output Inrush Current

 180A, 10ms (max.)

   AC Output OCP

 8.5A lasts more than 20s when load connects to Switched, Latch Mode, Recover after Po   wer Cycle

   Analog 0-10V Interface Max. Current

 Sourcing / Sinking ≤ 25mA

   DALI Output Voltage Range

 14Vdc to 18.5Vdc

   DALI Open Circuit Voltage

 18.5Vdc Max.

   DALI Max. Output Voltage

 18.5Vdc

   DALI Typ. Output Voltage

 15Vdc

   DALI Min. Output Voltage

 14Vdc

   DALI Guaranteed Output Current

 55mA (programmable to 200mA)

   DALI Max. Output Current

 62mA (210mA)

   DALI Max. Output Power

 1.0W (3.0W)

   ESI AUX VCC

 Rated 15Vdc (deviation 13Vdc to 17Vdc) @ 50mA

   Protections

 Short circuit protection of DA+ / DA-

   Environment & Approbation

   Protection Rating

 IP24

   Ambient Temp Range

 -20℃ to +70℃

   Max. Case Temperature[Tcase]

 80℃ for Maintaining Specified Life Expectancy & 85℃ for CE Safety Features

   Operating Condition

 Damp and dry

   Safety Standards

 EN61347-1, EN61347-2-1

   EMC Emission

 Compliance to EN55015, EN61000-3-2, EN61000-3-3

   EMC Immunity

 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, surge immunity Line-Line 1KV

   Isolation

 Refer to table

   Audible Noise

 < 24dB Class A

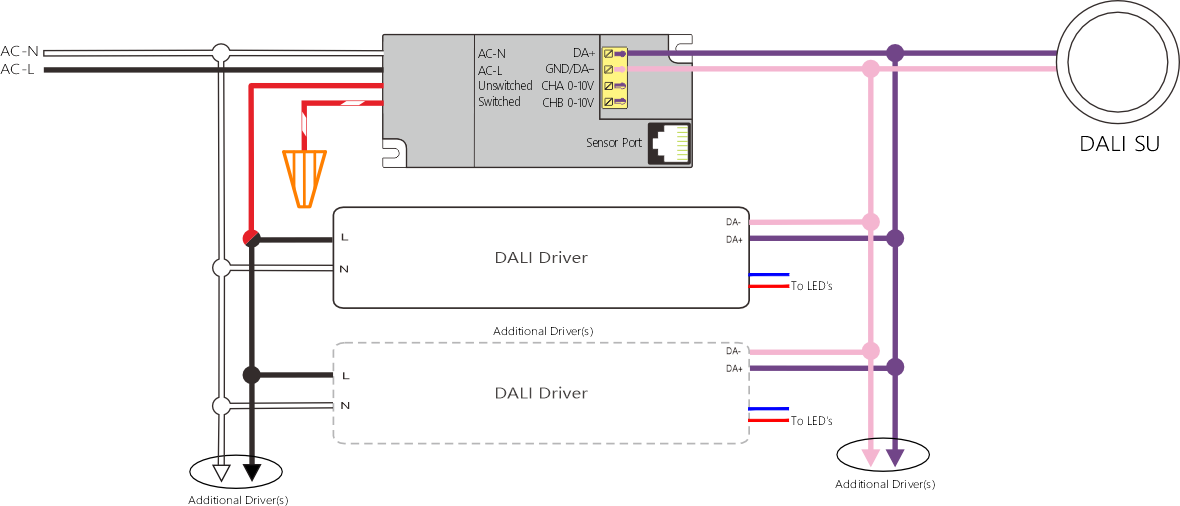

  DALI sensor to DALI driver wiring diagram

DALICU04-EN-1A 1.png

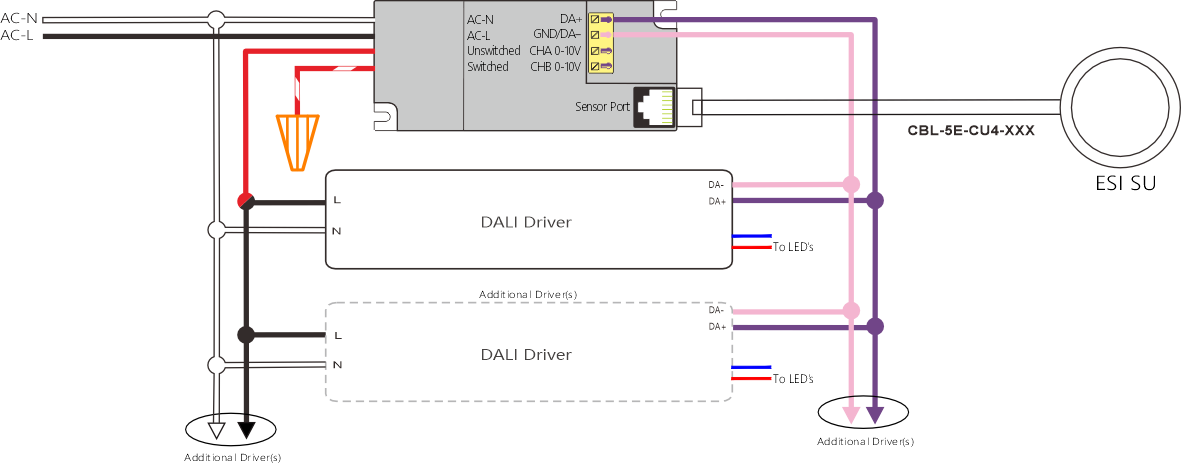

  ESI sensor to DALI driver wiring diagram


DALICU04-EN-1A 2.png



  Dimensions & Weight



  inchmm
Case Length  5.23"133

DALICU04-EN-1A CC.png

Case Width  2.24"57
Case Height  1.18"30
Mounting Length
  4.92"125
Overall Length  5.23"133
Weight   0.088Ib/0.040Kg










  Cable Specification

Installin accordance with Nationa and Loca Electrical Codes.

Output cable requirements preparation for output.


   Solid conductor:
   Input: 0.5…1.5mm² / 20…16 AWG
   Output: 0.5…0.75 mm² / 20…18 AWG
