Product description
・It can measure power and internal temperature.
・The data can be read by ESI or DALI port.
・2 CHs 0-10V dimming signals or digital dimming commands
are buffered output.
・0-10V output interfaces are designed to sink or source current up
to 25mA.
・0-10V analog signal (default) or digital command dimming
method can be selected through ESI.
・Zero-crossing switching functon for AC load latching relay.
・AC load latching rel ay to minimize the standby power consumption.
・AC output: 8A Max.@ 120Vac, 1385VA Max.@ 175-347Vac.
・Over current protection when load connects to Switched, and
the failure informaton is recorded in NVM.
・Built-in ESI PSU,15V, 50mA.
・0-10V dimming output and ESI interfaces are both compliant
with SELV.
・Communic ation protocol compatible with Enlighted
Sensor Interface [ESI] Definition Rev 4.8.
・The full-length mounting or the break-off tab can be removedto
create a smaller form factor for a reduced footprint.
| Ordering Information | |
| Model Number | CU-4A-FM-B |
Full Product Name | ESI Controlgear |
| Input Information | |
| Line Voltage | 100 ~ 277Vac |
Line Curren | 0.1A Max. (AC output power is not included) |
| Line Frequency | 50 / 60Hz |
Min. Mains Voltage Operational | 90Vac |
| Min. Mains Voltage Operational | 300Vac |
Inrush Current | Cold Start ≤ 60A (twidth = 50us measured at 10% Ipeak) @ 277Vac, Per NEMA 410 |
| Output Information | |
| AC Output Current | 8A/120Vac, 6A/230Vac, 5A/277Vac |
AC Output Inrush Current | 180A, 10ms (max.) |
| AC Output OCP | 8.5A lasts more than 20s when load connects to Switched,Latch Mode,Recover after Power Cycle |
0-10V Dimming Interface Max. Current | Sourcing / Sinking ≤ 25mA |
| ESI AUX VCC | Rated 15Vdc (deviation 13Vdc to 17Vdc) @ 50mA |
| Environment & Approbation | |
Protection Rating | IP24 |
Ambient Temp Range | -20℃ to +70℃ |
Max. Case Temperature[Tcase] | 80℃ for Maintaining Specified Life Expectancy & 85℃ for CE Safety Features |
| Operating Condition | Damp and dry |
| Safety Standards | EN61347-1, EN61347-2-1 |
| EMC Emission | Compliance to EN55015, EN61000-3-2, EN61000-3-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, surge immunity Line-Line 1KV |
| Isolation | Refer to table |
| Audible Noise | < 24dB Class A |

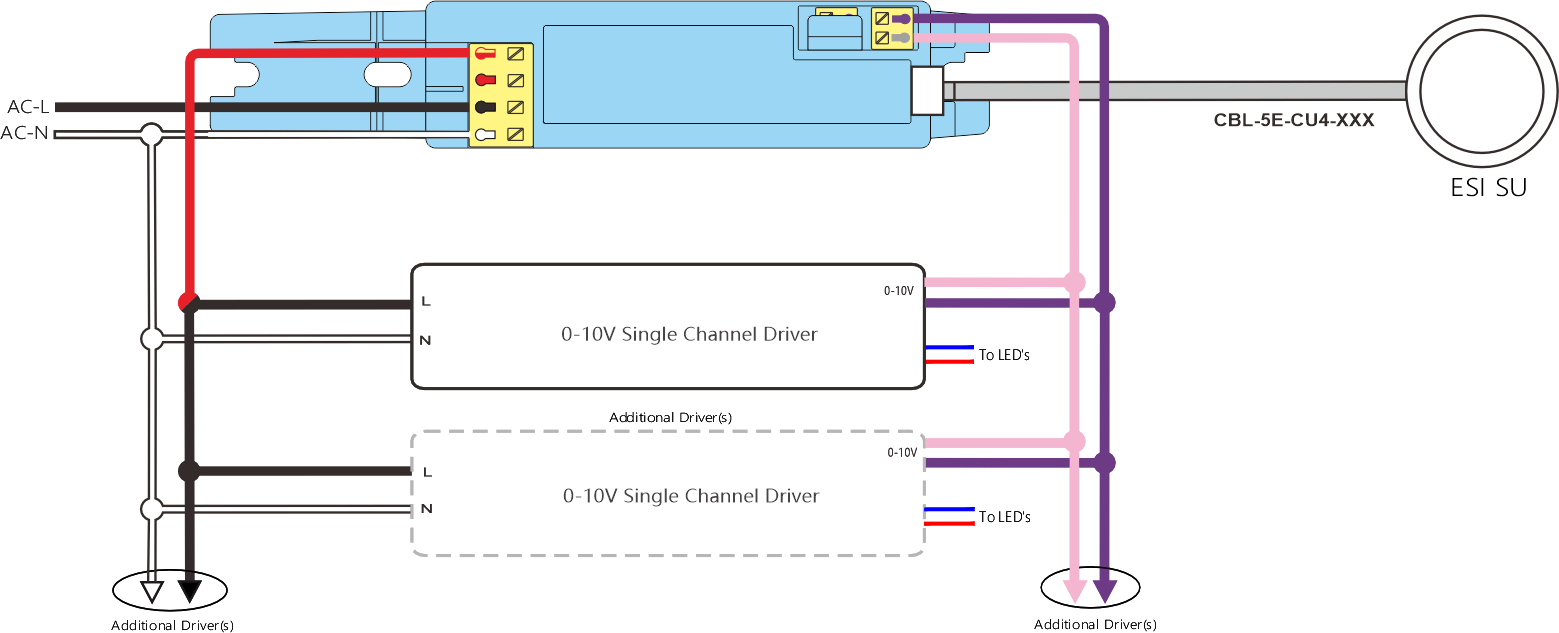

| ESI sensor to single channel 0-10V driver Wiring Diagram |

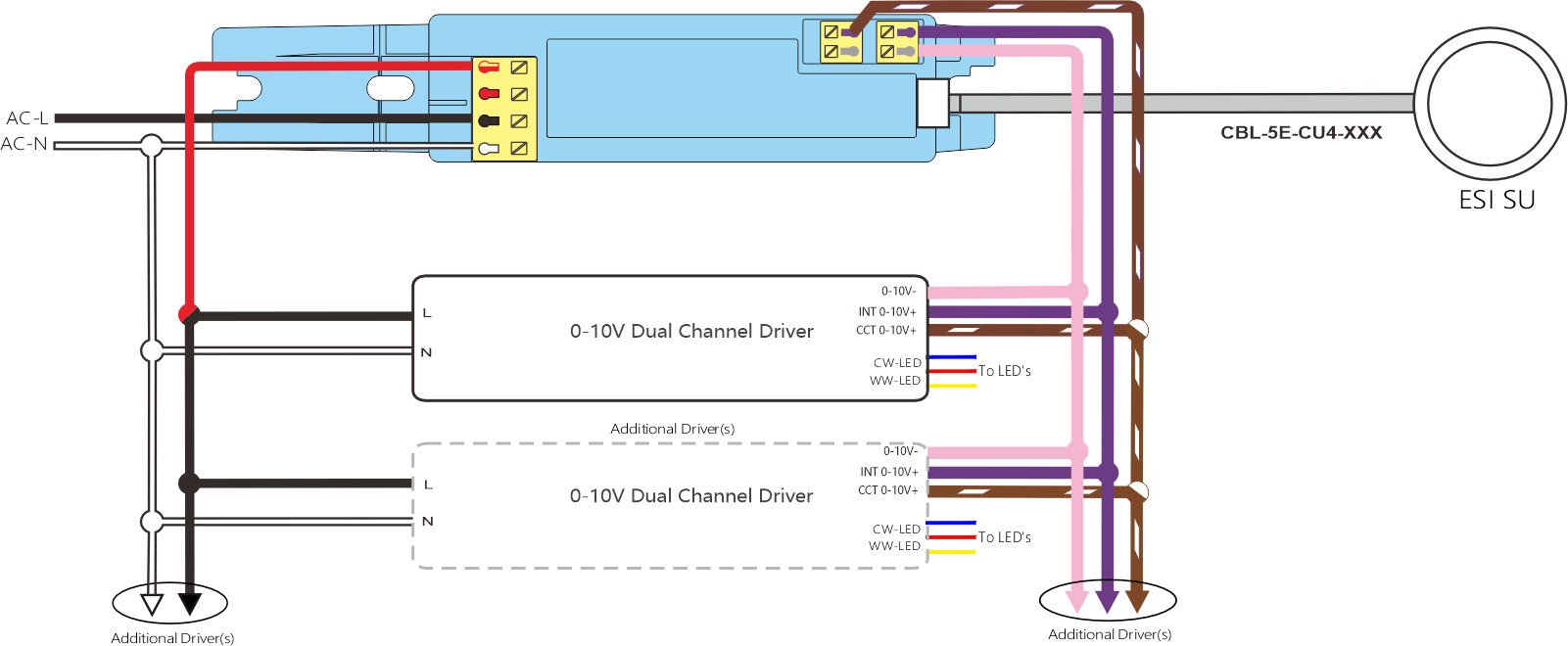

| ESI sensor to dual channel 0-10V driver Wiring Diagram |

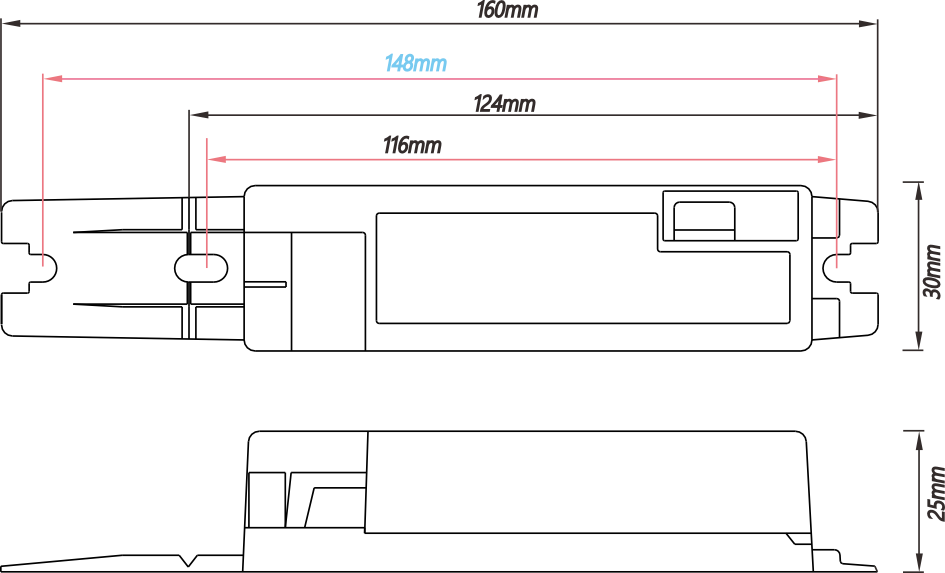

| Dimensions & Weight |
| inch | mm | ||
| Case Length | 6.3" | 160 (with tab) | |
| 4.88" | 124 (without tab) | ||
| Case Width | 1.18" | 30 | |
| Case Height | 0.98" | 25 | |
| Mounting Length | 5.83" | 148 (with tab) | |
| 4.57" | 116 (without tab) | ||
| Weight | 3 oz / 85 grams | ||
| Cable Specification |
・Installin accordance with Nationa and LocaElectrical Codes.
・Output cable requirements preparation for output.
Solid conductor:
Output: 0.5...0.75mm2 / 20...18AWG
Input wire specifications:

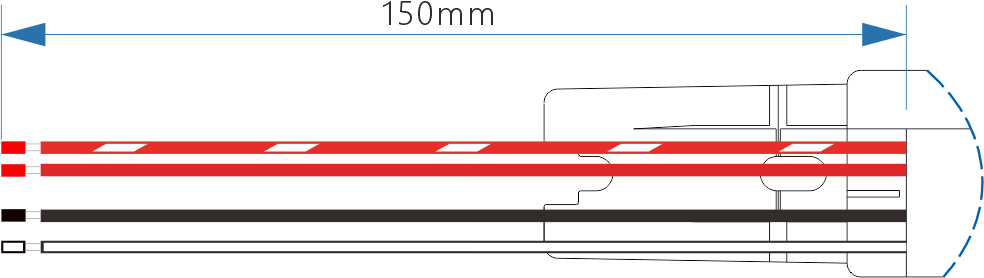

| Color | Cable | Length | Connector definition |
|
| Red/Wht | 18AWG | 5.9"/150mm | AC-L out2 (Switched) | |
| Red | 18AWG | 5.9"/150mm | AC-L out1 (Unswitched) | |
| Black | 18AWG | 5.9"/150mm | AC Input Line | |
| White | 18AWG | 5.9"/150mm | AC Input Neutral |
